EWH Series Water Heater Tune Up Kit
Contents of EWH Electric Water Heater Tune Up Kit
Our composition provide your the best choice
In these plumber'S Pack, we provide your many choice with Various combinations of water heater repair parts and tools for your easiest and quickly fixing your electrical water heater. Checking above contents and your heater conditions before make the choice.

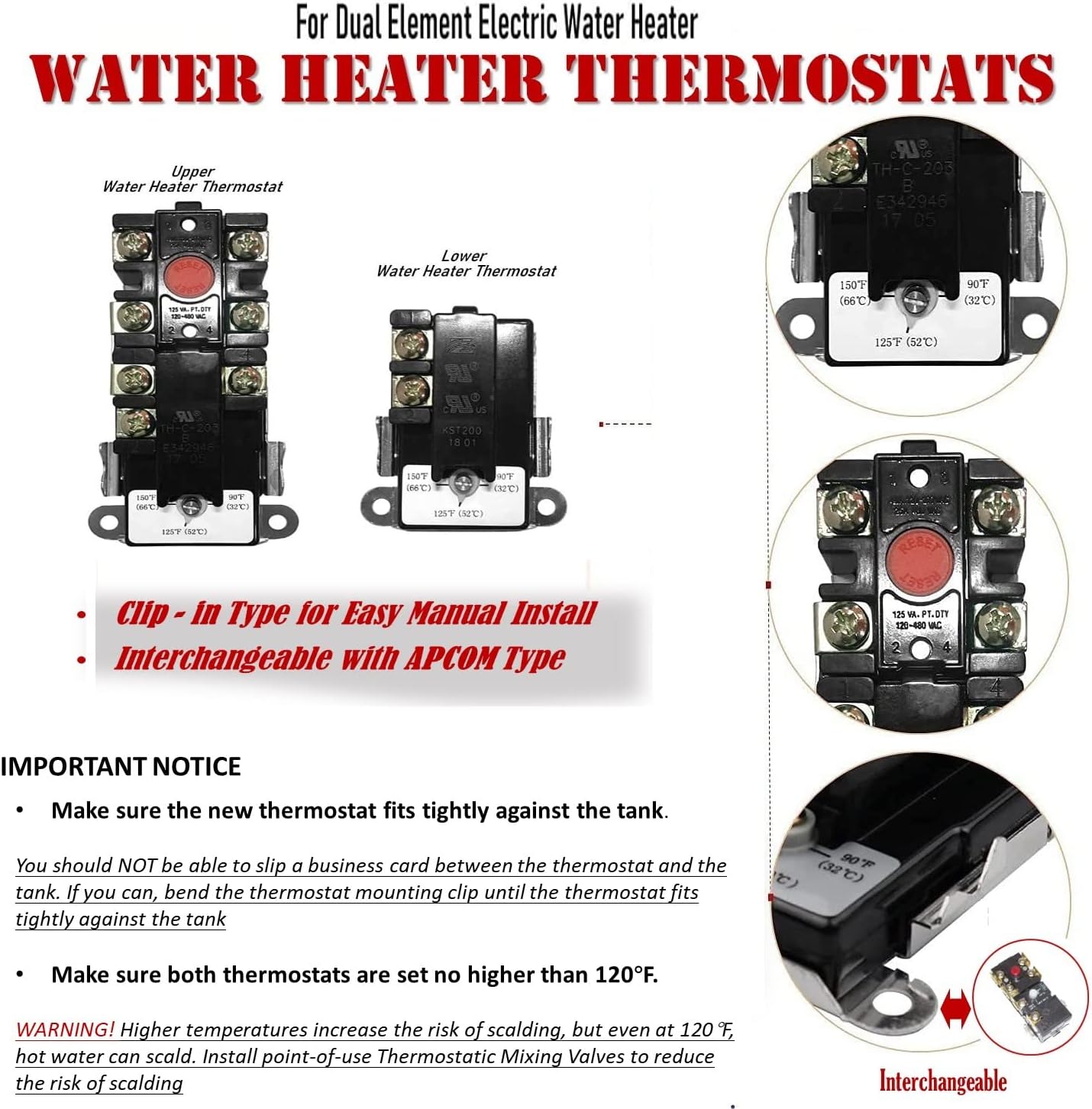

1. Electric Water Heater Thermostats ( 1x Upper and 1x Lower)
Work voltage: 120/240/480 VAC
Energy saving range setting.
Built in safety switch to prevent overheating.
TOD style and compatible with Apcom style
Reset Button, Temp. set Adjustable
UL certification.
CAUTION: Make sure both thermostats are set no higher than 120 °F
WARNING! Higher temperatures increase the risk of scalding, but even at 120 °F, hot water can scald. Install point-of-use Thermostatic Mixing Valves to reduce the risk of scalding
CAUTION: Make sure the new thermostat fits tightly against the tank.
You should NOT be able to slip a business card between the thermostat and the tank.

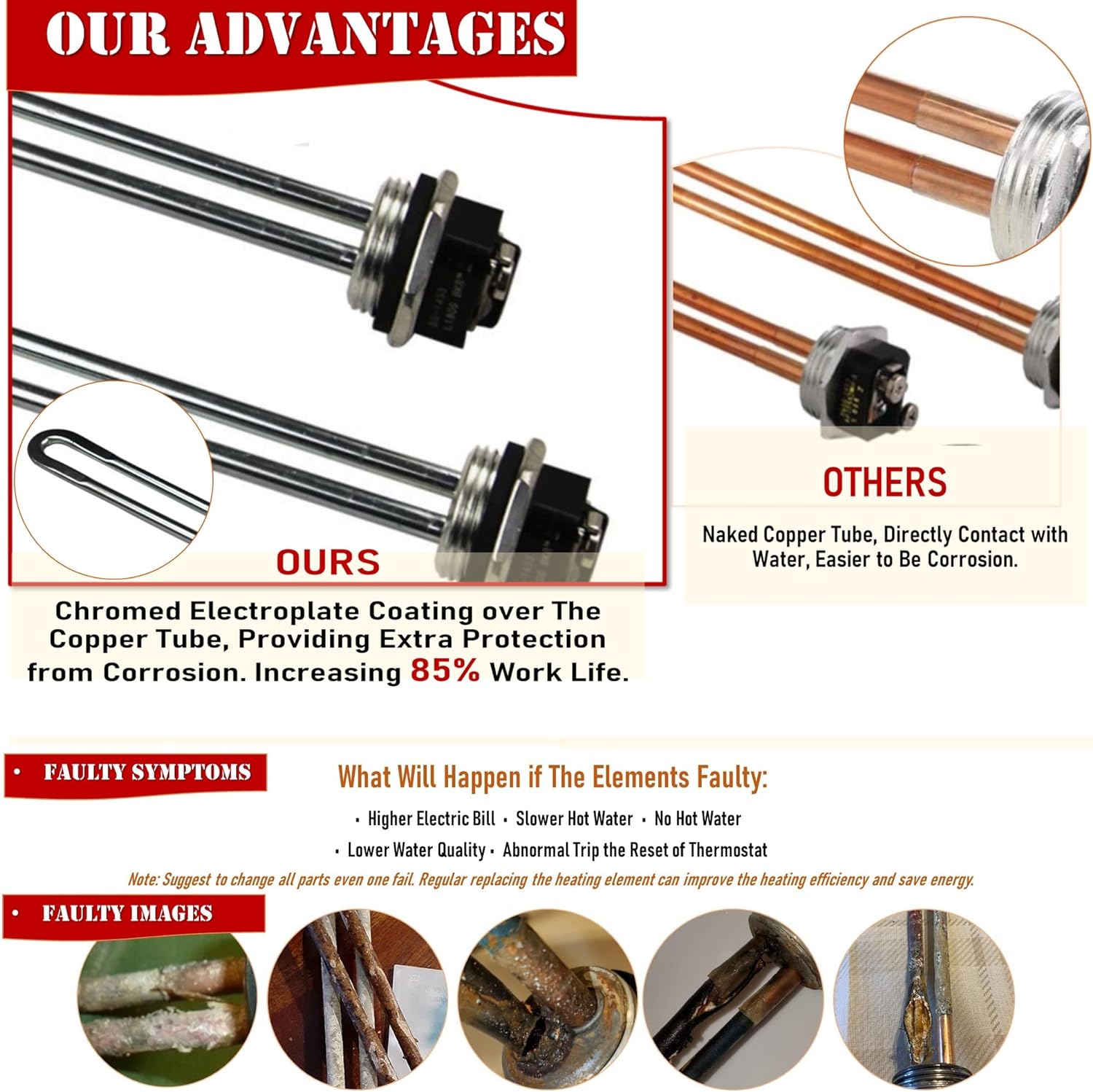

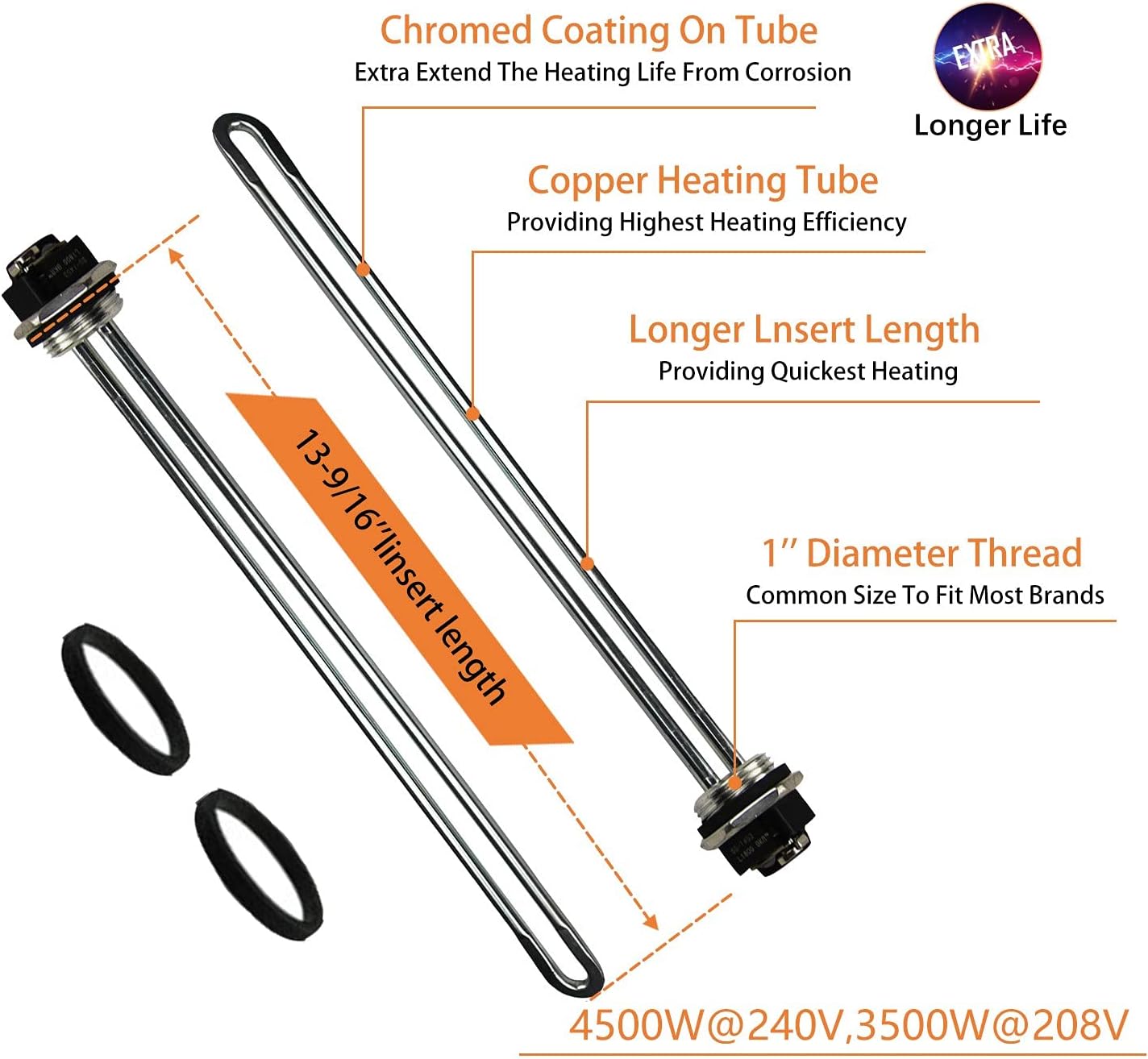

2. High Density Wattage Heating Elements
For Heater Tank Size ≥ 30 Gal
4500W @ 240V (3800W@208V)
COPPER Water Heater Element w/ Chromed Coating
Insert Length: 13-9/16"(Fits heater tank inside diameter greater than 14").
Model: SGB1453
Screw-in type. 1" NPT thread
Use 1-1/2" Element Wrench
UL certification.
Available in SKUs of: EWH-01, EWH-02, EWH-03 and EWH-04
3. Thermostat Terminal Protective Covers
To protect your connection terminal
UL certification
Clip-in type by manual
No need tools
Available in SKUs of: EWH-02 and EWH-04
4. Water Heater Element Wrench
Compatible with all standard 1-1/2" screw-in water heater elements
2 in 1: 1-1/2" socket and 1-1/16" socket
10" length for easier work
High quality steel
Cross holes allow you to use a screwdriver
Fits into offsets wher
