Six colors for a variety of kitchen color schemes.
Matte Black
Oil Rubbed Bronze
Chrome
Champagne Bronze
Antique Copper
Brushed Nickel

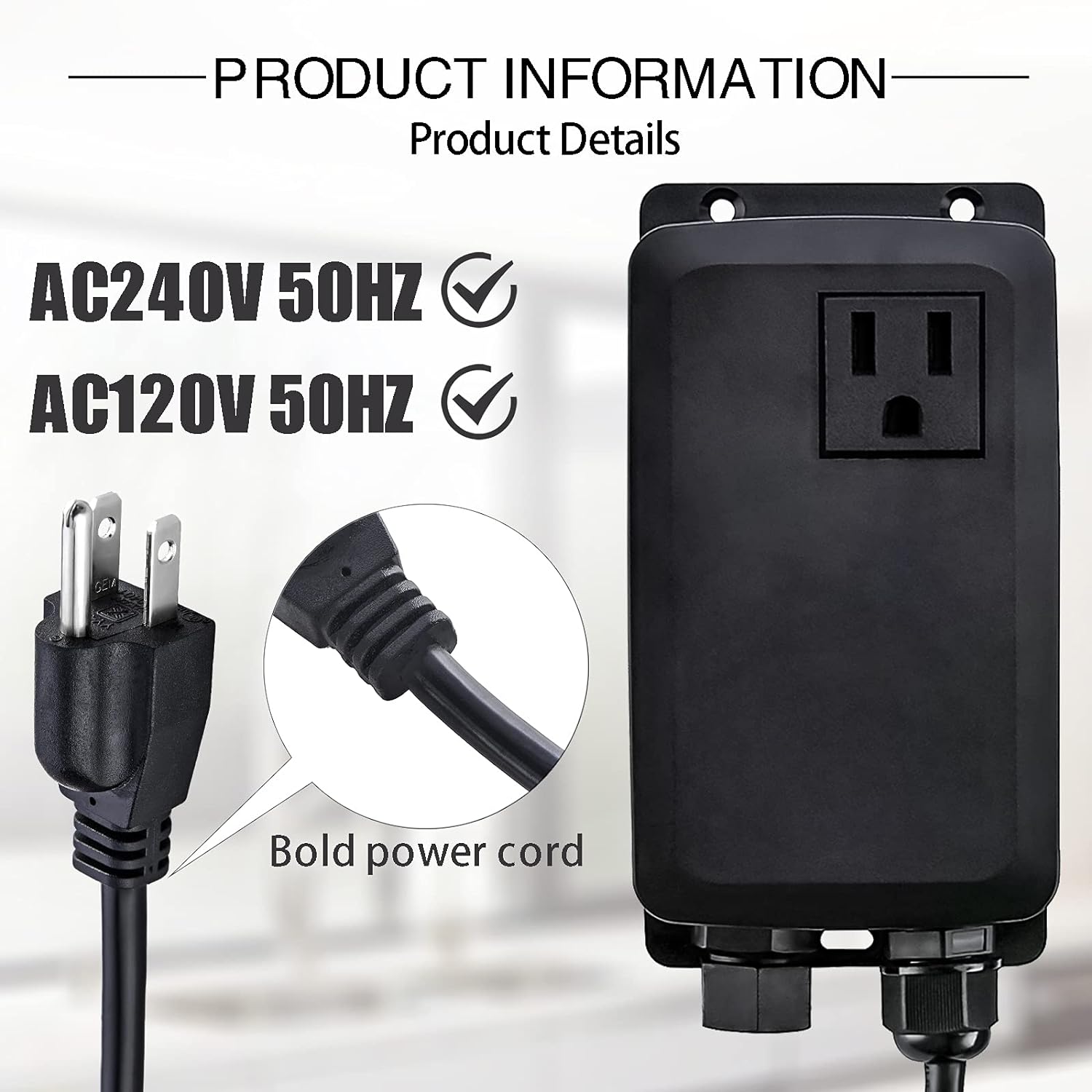

Poewer Module
Used to connect the air switch button with the garbage disposer.
The maximum power supported is 3hp.
Electrical Rating: 22A, 125/250VAC.

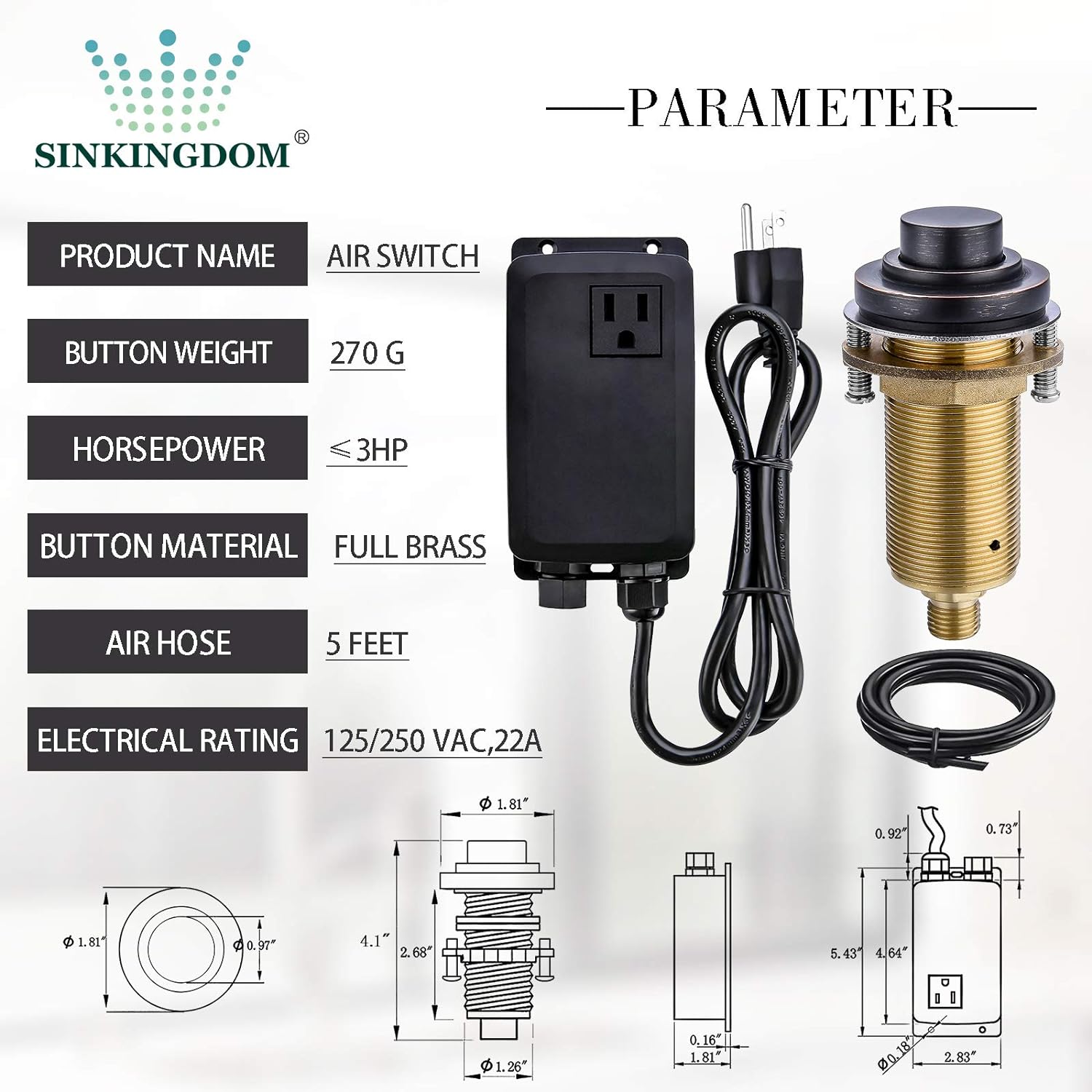

Single Outlet Air Switch Kit Dual Outlet Air Switch Kit Cordless Air Switch Kit Dual Outlet Air Switch Kit Air Switch Button
Button Weight 270 Gram 270 Gram 270 Gram 60 Gram 60 Gram

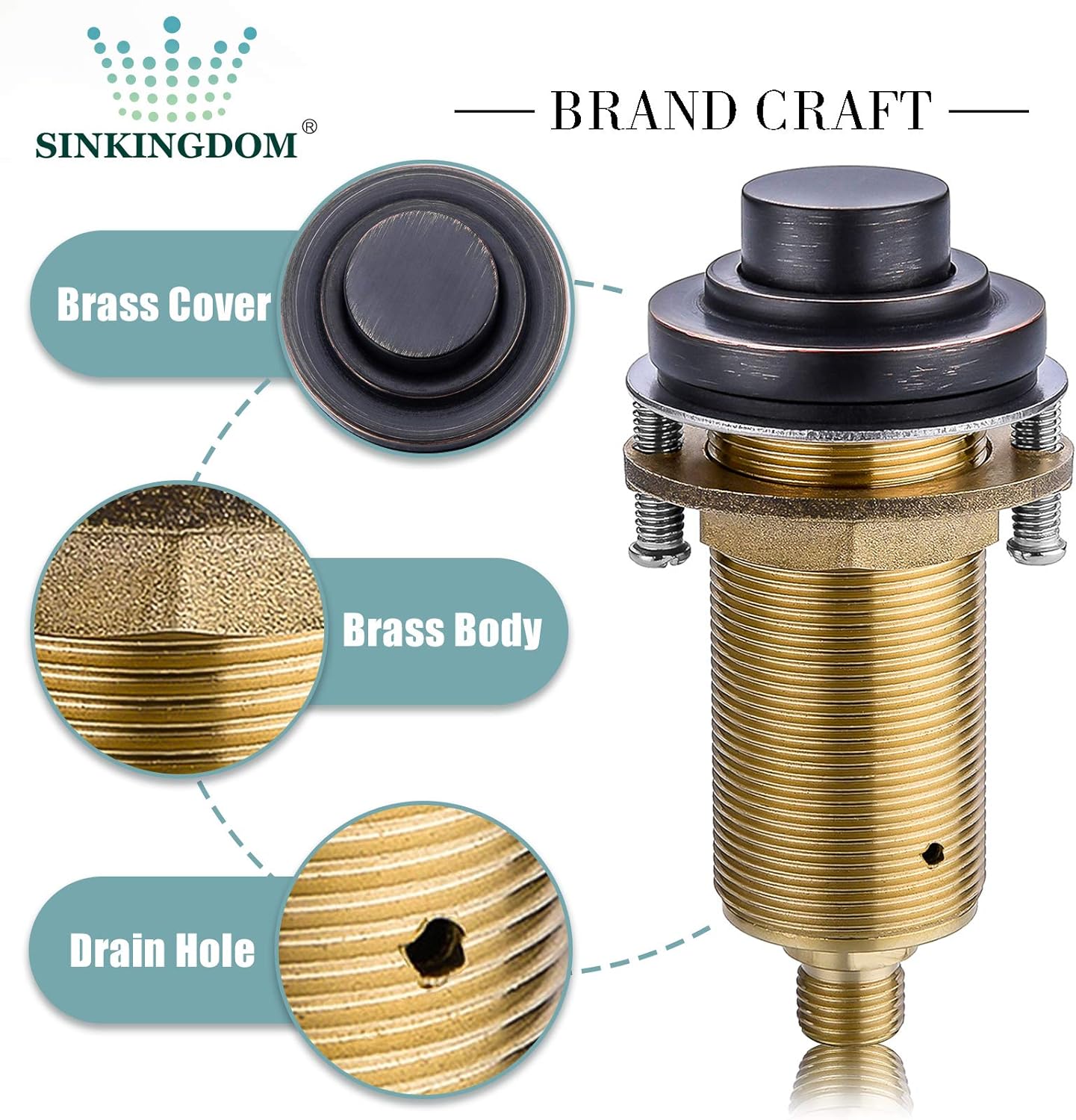

Button Material Brass Brass Brass Plastic + Brass Plastic + Brass
Power 3HP 3HP 3HP 3HP X
Power Cable 1 m 1 m X X X
Air Tube 1.5 m 1.5 m 1.5 m 1.5 m 1.5 m
Install Hole 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8"
Install
Button installation
Install the buttons and accessories directly into the standard sink hole. Button mounting portion of the length of 2.68 inches.
In the order shown, Button--Sink Top/Counter Top--Rubber Gasket--Metal Gasket--Screw Nut.
Tighten the plastic nut to ensure a seal.
Tips: Drill a hole with diameter not narrower than 1-3/8inches. Countertop or Sinktop not thicker than 2.50 inches.
Air Tube installation
Pass the air tube through the nut.
Then connect the nozzle of the air tube to the protrusion.
Push in forward.
General diagram
Install air switch button on sink top.
Use air tube to connect air switch button and power module.
Connect the power cord of the garbage disposal to the power module.
Connect the power cord of the air switch set to the wall socket.
Tips: Gently press the air switch button to start the garbage disposal, press again to turn
