Six Colors Unique Designs
Color: Brushed Nickel, Chrome, Matte Black, Oil Rubbed Bronze, Champagne Bronze, Antique Copper.

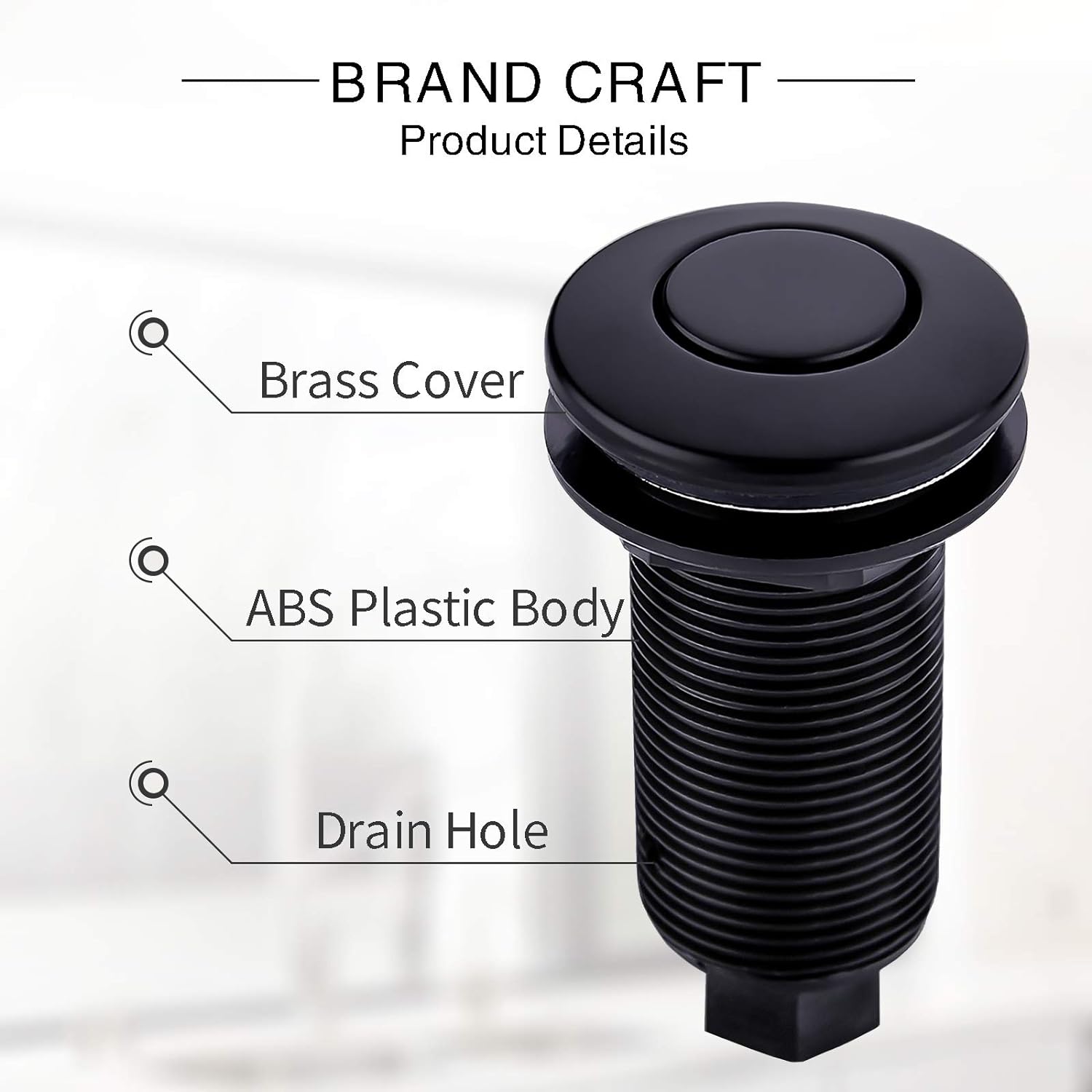

The cover of the plastic button is made of brass, value for money and durable.
Both buttons have drain holes and rubber gasket. Effectively prevent water entering the air tube and buttons.
Pakage Include

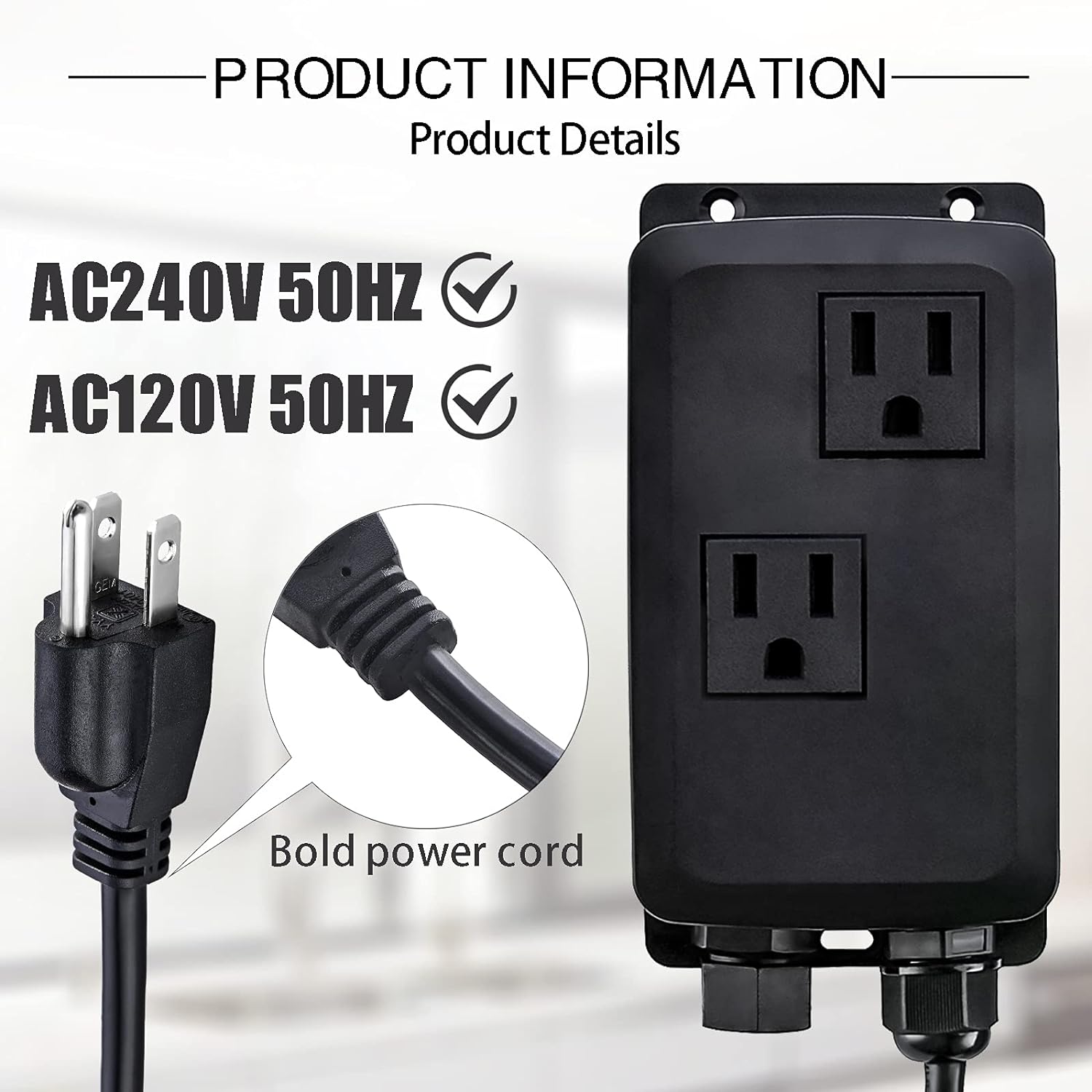

1x Control Box
1x Push Button
1x Vacuum Hose
1x Screw Bolt
1x 3M Glue
2x Rubber Gasket
3x Mounting Screws
Single Outlet Air Switch Kit Dual Outlet Air Switch Kit Cordless Air Switch Kit Cordless Air Switch Kit Dual Outlet Air Switch Button
Button Weight 270 Gram 60 Gram 270 Gram 60 Gram 60 Gram
Button Material Brass Plastic + Brass Brass Plastic + Brass Plastic + Brass
Install Hole 1-3/8" 1-3/8" 1-3/8" 1-3/8" 1-3/8"
Power 3HP 3HP 3HP 3HP X
Power Cable 1 m 1 m X X X
Air Tube 1.5 m 1.5 m 1.5 m 1.5 m 1.5 m
Install
Button installation
Install the buttons and accessories directly into the standard sink hole. Button mounting portion of the length of 2.68 inches.
In the order shown, Button--Rubber Gasket--Sink Top/Counter Top--Rubber Gasket--Metal Gasket--Screw Nut.
Tighten the plastic nut to ensure a seal.
Tips: Drill a hole with diameter not narrower than 1-3/8inches. Countertop or Sinktop not thicker than 2.50 inches.
Air Tube installation
Pass the air tube through the nut.
Then connect the nozzle of the air tube to the protrusion.
Push in forward.
General diagram
Install air switch button on sink top.
Use air tube to connect air switch button and power module.
Connect the power cord of the garbage disposal to the power module.
Connect the power cord of the air switch s
